    Auto Splicer, for paper roll of Corrugated Cardboard Production Line

    Ask Lasest Price
    Brand Name : Yush
    Model Number : ASP
    Certification : CE
    Price : FOB: 20000~40000USD
    Payment Terms : T/T
    Supply Ability : 15 sets per month
    Delivery Time : 15~30 working days
    • Product Details
    • Company Profile

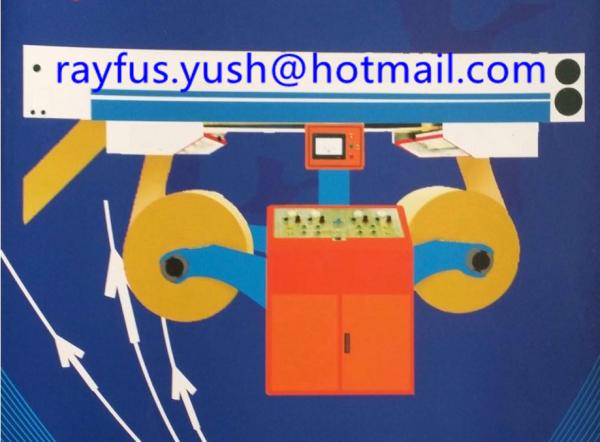

    Auto Splicer, for paper roll of Corrugated Cardboard Production Line

    Auto Splicer

    Features:

    Improving the efficiency of mill roll and mill roll can be fully used up

    Zero tail splicing, the sticking area is quite small which can reduce the consumption

    Non-stop slicing which can increase the working efficicency dramatically

    Automatic tension control which indicates the advantages of easy operation and humanization

    Simple and quick through structure which indicates the advantages of easy operation and humanization

    Special design flatenning technology which can eliminate the wrinkle phenomenon dramatically

    PLC control with high automation integrated level

    Technical parameters:

    The maximum width: 1600,1800,,2200,2500mm

    The maximum splicing speed: 140-220m/min (based on the paper quality)

    The maximum diameter of mill roll: 1500mm

    Suitable paper: 90~440g/m2

    The minimum strength of extension: 3 N/mm (based on the paper quality and its tension level)

    Tension control range: 5~100kg


    3/5/7-layer Corrugated Cardboard Production Line

    1) WJ-I/II/III 3/5/7-layer Corrugated Cardboard Production Line consists of the following machines, Electrical Shaftless Mill Roll Stand, Single Preheater, Fingerless type Single Facer, Overhead Conveyor Bridge, Duplex Preheater, Duplex Gluer, Double Facer, Lift-down Thin Blade Slitter Scorer, NC Cut-off, Right-angle Conveyor & Stacker, etc.

    2) Kraft Paper Reel to be corrugated and glue by Corn Starch Gum, continuously produce, slit, crease & cut to 3/5-layer Corrugated Cardboard Sheet, and then conveyor, stack and output.

    3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.

    4) It is the ideal and perfect equipment for corrugated carton box factories.


    Max Effective Width1100~2200mm
    Max Paper Roll Diameter1500mm
    Max Paper Roll Weight3000kg
    Corrugating RollerΦ280~405mm, 48CrMo alloy steel, hardness HRC58°-60°
    Min Slitting Width150mm
    Cutting Length500~9999mm
    Design Speed100~200m/min
    Heating MethodSteam Heating
    Economic Working Speed80~160m/min

    3/5/7-layer Corrugated Cardboard Production Line, Corrugated Cardboard Making Machine

    3/5/7-layer Corrugated Cardboard Production Line, Corrugated Cardboard Making Machine

    3/5/7-layer Corrugated Cardboard Production Line, Corrugated Cardboard Making Machine

    3/5/7-layer Corrugated Cardboard Production Line, Corrugated Cardboard Making Machine
