Single Faced Slitter Cutter Stacker, Single Faced Corrugated Cardboard Slitting + Cutting

Ask Lasest Price
Brand Name :	Yush
Certification :	CE
Model Number :	DWD-NC
Price :	FOB: 25000~40000USD
Delivery Time :	15~30 working days
Payment Terms :	T/T
Supply Ability :	15 sets per month

Add to Cart

Product Details
Company Profile

Single Faced Slitter Cutter Stacker, Single Faced Corrugated Cardboard Slitting + Cutting

DWD-NC Single Faced Slitter Cutter Stacker

1) Computer system to keep order. Man-machine conversation system NC. Automatic adjust cutting speed by cardboard specification and maching.

2) The screen display various production message, we could consult, modification, superaddition and cancel order during running.

3) High quality servo motor, the servo drive system import from Germany.

4) Transmission system adopts oil pump auto-Cye lubricate.

5) Exact and adjustable no gap gear assure knife-edge joggle exactly, good incision quality, high beeline degree, protect knives.

6) Conveyor system after the slitter and cutter is applied to delivery the board on two direction, for rise efficiency and easy stacking.

7) It will be more suitable for large or moderate manufactories of offset printing box.

Max Effective Width	1100~2200mm
Slitting	4-slitter
Cutting Length	300~9999mm
Cutting Precision	±1.0mm
Design Speed	120m/min

DW-120 Single Facer Corrugation Line

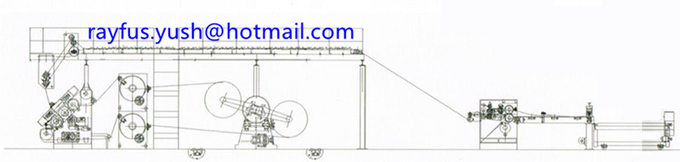

1) This product line consists of Hydraulic Shaftless Mill Roll Stand, Auto Splicer, Preheater, SF-320S Fingerless type Single Facer, NC Single Faced Slitter Cutter Stacker, Steam Boiler & Pipeline(customer-owned parts), etc.
2) Kraft Paper Reel to corrugate and glue by Corn Starch Gum, continuously produce and cut to Single Faced Corrugated Cardboard Sheet, and then through Flute Laminator Machine or Sheet Pasting Machine to laminate to 3/5-ply corrugated sheet, press and fix.
3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. Good work conditions.
4) It is the ideal and perfect equipment for small or medium carton factories.

Max Effective Width	1100~2200mm
Max Paper Roll Diameter	1500mm
Max Paper Roll Weight	3000kg

Corrugating Roller	Φ320mm, 48CrMo alloy steel, hardness HRC58°-60°
Cutting Length	300~9999mm
Cutting Precision	±1mm

Design Speed	120m/min
Heating Method	Steam Heating
Economic Working Speed	80~100m/min
