Die-plate for Platform Die-cutting Machine,
or Platen Die-cutting and Creasing Machine
or Flatbed Die-cutter Semi-auto / Automatic
Die-plate Making Equipments
Platform Die-cutter
1) MCJ Platform Die-cutter is the improved equipment, to make the
special upscale unusual carton, which can slice the side, slice the
corner, hurtle the hole, open the slot, press the trace, and other
processes.
2) It can make all the above-mentioned processes, into one integral
whole process, and merge once mould cutting into the type.
3) The quality of slicing the mould is stable, the size is
accurate, the side is hairless.
4) It is clean and tidy, and operated safely and conveniently.
| Max Sheet Size | 1300*1500mm~2000*3000mm |
| Design Speed | 30~15pcs/min |
Platen Die-cutting and Creasing Machine
1) ML Platen Creasing & Die-cutting Machine is hand-feeding-style
semi-automatic creasing and cutting machine, for which the
engineers absorbed advanced structures to improve the design. Major
parts: Stand, pressure frame, electro-magnetic clutch transmission,
electrical controller, automatic reset device, automatic counting
parts, and according to different application requirements,
designed to derive a series of products with different functions.
2) This series product is multi-functional, large pressure cutting
edge, easy operation, safety features. It applies pressure cutting
a variety of forming cardboard, plastic and leather, etc. Products.
Various high-level fine print can be found in the machine on the
convex-concave indentation, and thus the print even more exquisite,
beautiful, richer three-dimensional sense.
| Max Effective Area | 750*520mm~2500*1500mm |
| Max Rule Length | 15~80mm |
| Working Speed | 30~15pcs/min |

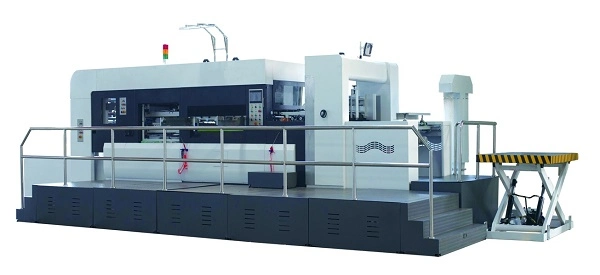

Flatbed Die-cutter & Creaser
1) MY-A Automatic Die-cutting & Creasing Machine adopts automatic
top suction head feeding system, more suitable for paperboard or
thin E-flute corrugated cardboard.2) Front, back and side position mechanism ensures perfect
die-cutting precision.3) Adopt intermittent mechanism with high precision, air clutch,
pneumatic locking mechanism, programmable controller and
man-machine interface.4) The interface can display various digital information of
machine, working speed, amount of sheet processed, total running
time, etc.5) It is easy to eliminate troubles according to the display of
trouble shooting.6) Adopt transducer to control the main motor to achieve stepless
speed variation.7) Equipped with sensors and safe-ensuring devices to guarantee
safe operation.8) Front and back pressure can be adjusted separately.9) Convenient to stop machine by hand, could also die-cutting
without gripper edge.10) Equipped with auto stripping system and auto stacking unit.| Model | MY-S | MY-A/Q |
| Max Sheet Size | 1060*760~1650*1200mm | 1050*750~1650*1200mm |
| Min Sheet Size | 350*400~450*550mm | 350*400~450*550mm |
| Max Die-cutting Size | 1040*740mm~1620*1180mm | 1040*740mm~1620*1180mm |
| Max Pressure | 300N/cm 2 | 300N/cm 2 |
| Die-cutting Precision | ±0.1mm | ±0.1mm |
| Paperboard Sheet | 200~2000gsm | 200~2000gsm |
| Corrugated Sheet | 1~8mm | 1~8mm |
| Max Stacking Height | 1200mm | 1200mm |
| Design Speed | 5000~4000sheets/h | 7500~5000sheets/h |
