    Automatic Die-cutter and Creaser Machine, Flatbed Die-cutting + Creasing

    Ask Lasest Price
    Brand Name : Yush
    Certification : CE
    Model Number : MY-A
    Price : FOB: 120000~200000USD
    Delivery Time : 30~60 working days
    Payment Terms : T/T
    Supply Ability : 10 sets per month
    • Product Details
    • Company Profile

    Automatic Die-cutter and Creaser Machine, Flatbed Die-cutting + Creasing

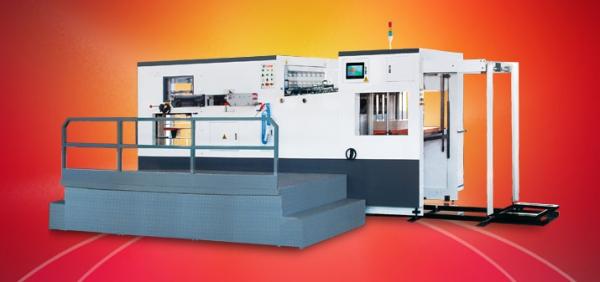

    MY-A Automatic Die-cutter and Creaser Machine

    1) MY-A Automatic Die-cutting & Creasing Machine adopts automatic top suction head feeding system, more suitable for paperboard or thin E-flute corrugated cardboard.

    2) Front, back and side position mechanism ensures perfect die-cutting precision.

    3) Adopt intermittent mechanism with high precision, air clutch, pneumatic locking mechanism, programmable controller and man-machine interface.

    4) The interface can display various digital information of machine, working speed, amount of sheet processed, total running time, etc.

    5) It is easy to eliminate troubles according to the display of trouble shooting.

    6) Adopt transducer to control the main motor to achieve stepless speed variation.

    7) Equipped with sensors and safe-ensuring devices to guarantee safe operation.

    8) Front and back pressure can be adjusted separately.

    9) Convenient to stop machine by hand, could also die-cutting without gripper edge.

    10) Equipped with auto stripping system and auto stacking unit.

    Max Sheet Size

    1050*750~1650*1200mm

    Min Sheet Size

    350*400~450*550mm

    Max Die-cutting Size

    1040*720mm~1620*1180mm

    Max Pressure

    300N/cm2

    Die-cutting Precision

    ±0.1mm

    Paperboard Sheet

    200~2000gsm

    Corrugated Sheet

    1~6mm

    Max Stacking Height

    1200mm

    Design Speed

    7500~5000sheets/h
