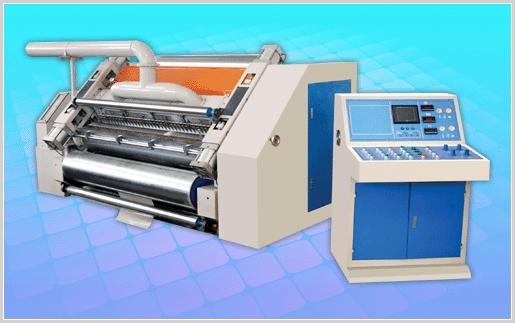

    Fingerless type Single Facer Corrugated Machine, Vacuum Suction Model

    Ask Lasest Price
    Brand Name : Yush
    Model Number : SF-S
    Certification : CE
    Price : FOB: 25000~100000USD
    Delivery Time : 30~60 working days
    Payment Terms : T/T
    Supply Ability : 10 sets per month
    • Product Details
    • Company Profile

    Fingerless type Single Facer Corrugated Machine, Vacuum Suction Model

    SF-S Fingerless type Single Facer Corrugator Machine

    1) SF-S Fingerless type Single Facer Corrugator Machine drive reducer box with oil immersed type lubricating to reduce noise keep running stable. Adopt gimbals transmission. Separate power.

    2) Corrugating roller, pressure roller and glue roller by pneumatic adjustment.

    3) Paper transmit adopt vacuum suction method, with wind control system, to keep flute profiles stable of the lower-roller in the condition of running up.

    4) Bearing of corrugated and pressure roller adopt high temperature lubricate grease. Glue parts auto supply glue circularly.

    5) Upper-lower corrugating rollers are made of 48CrMo high quality alloy steel, after heat-treatment. The hardness HRC58°-60°, surface after grinded. Gluing roller surface are treated by special mesh snick and chrome-plated.

    6) Motorized or manual glue width dividing to match the paper width.


    Max Effective Width

    1100~2200mm

    Flute Type

    customer-made

    Corrugating Roller

    Φ280~380mm, 48CrMo alloy steel, hardness HRC58°-60°

    Design Speed

    80~200m/min

    Heating Method

    Steam Heating

    Economic Working Speed

    60~160m/min
