    Finger type Single Facer, Finger type, Eletrical Heating

    Ask Lasest Price
    Brand Name : Yush
    Model Number : SF
    Certification : CE
    Price : FOB: 15000~20000USD
    Delivery Time : 15~30 working days
    Payment Terms : T/T
    Supply Ability : 15 sets per month
    • Product Details
    • Company Profile

    Finger type Single Facer, Finger type, Eletrical Heating

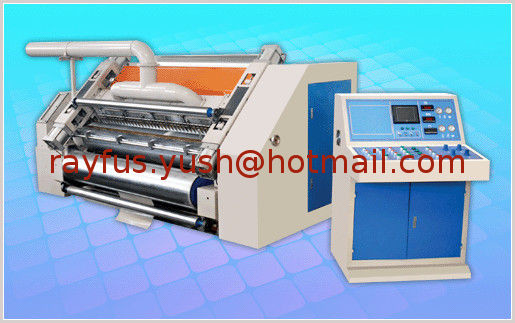

    SF Finger type Single Facer Corrugator

    1) SF Finger type Single Facer Corrugator adopts fingers to feeding paper.

    2) Corrugator Roller adopt 45# steel, heated & grinded, Chrome-plated.

    3) Low cost, easy to operate.

    4) Adopt electrical heating, working speed about 20~40m/min.

    Max Effective Width

    1000~2000mm

    Flute Type

    customer-made

    Corrugating Roller

    Φ245mm, 45# steel, heated & grinded, Chrome-plated

    Design Speed

    60m/min

    Heating Method

    Electrical Heating

    Economic Working Speed

    20~40m/min


    DW-60 Single Facer Corrugating Line

    1) DW-60 Single Facer Corrugated Cardboard Production Line consists of three single machines, Shaft type Mill Roll Stand, Finger type Single Facer, Rotary Cutter, etc.

    2) Kraft Paper Reel to corrugate and glue by Corn Starch Gum, continuously produce and cut to Single Faced Corrugated Cardboard Sheet, and then through Sheet Pasting Machine to laminate to 3/5-ply corrugated sheet, press and fix.

    3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.

    4) It is the ideal and perfect equipment for small or medium carton factories.

    Max Effective Width1000~2000mm
    Max Paper Roll Diameter1200mm
    Max Paper Roll Weight2000kg
    Corrugating RollerΦ245mm, 45# steel, heated & grinded, Chrome-plated
    Cutting Length400~2400mm
    Cutting Precision±2.5mm
    Design Speed60m/min
    Heating MethodElectrical Heating
    Economic Working Speed20~40m/min

    Single Facer Corrugating Line, Mill Roll Stand + Single Facer + Rotary CutterSingle Facer Corrugating Line, Mill Roll Stand + Single Facer + Rotary CutterSingle Facer Corrugating Line, Mill Roll Stand + Single Facer + Rotary Cutter

    Single Facer Corrugating Line, Mill Roll Stand + Single Facer + Rotary Cutter
