    Curved-arm Altitude Platform, Boom Lift, Electrical driving or Diesel driving

    Ask Lasest Price
    Brand Name : Yush
    Model Number : QBC
    Certification : ISO
    Price : FOB: 50000~80000USD
    Payment Terms : T/T
    Supply Ability : 15 sets per month
    Delivery Time : 30~60 working days
    • Product Details
    • Company Profile

    Curved-arm Altitude Platform, Boom Lift, Electrical driving or Diesel driving

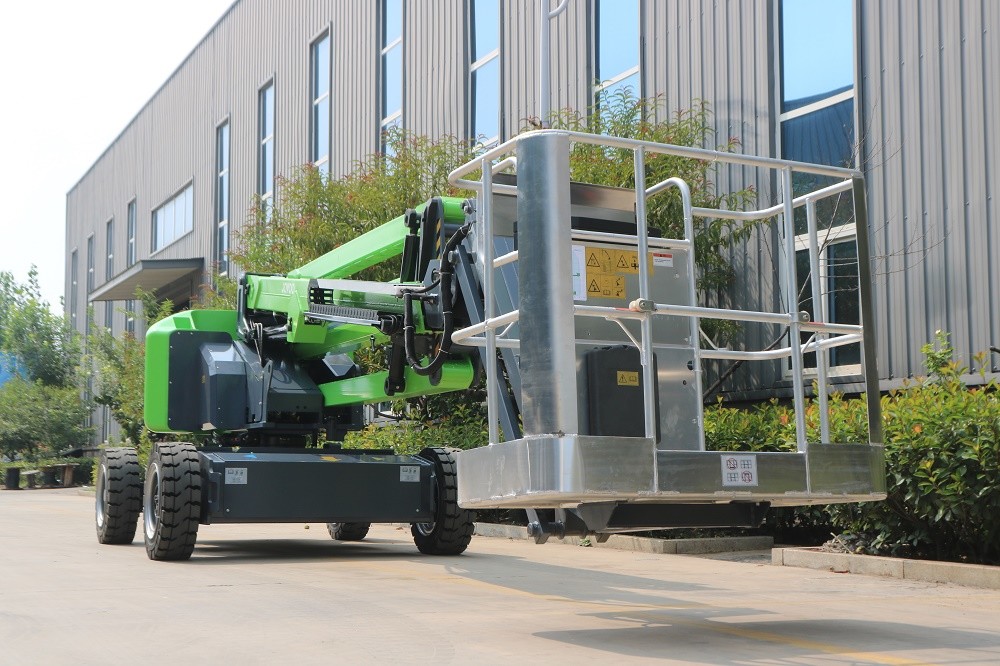

    QBC Curved-arm Altitude Platform (Boom Lift)

    Functional Specifications:

    1. This platform compact, lightweight and energy-saving, intelligent and perfect control system, humanized layout, lubrication-free design, easy operation and maintenance, comprehensive security protection and rich configuration.
    2. Σ-shape curved arm compact structure and flexible extension, can realize vertical lifting, horizontal extension and strong obstacle-surpassing ability, 160° rotatable platform large working range and narrow turntable, compact layout and high work efficiency, can switch to storage state, aluminum alloy working bucket easy to disassemble and assemble.
    3. Intuitive and friendly control panel easy full range operation, accurate and efficient control, equipped with chassis tilt protection, emergency landing, safe speed limit, flexible start and stop, etc. protection measures.

    Technical Parameters:

    Max Loading Weight230kg (2-person)
    Max Lifting Height16m
    Max Working Height18m
    Max Across-over Height7.6m
    Max Working Radius9m
    Platform Width (A)0.76m
    Platform Length (B)1.4m
    Stowed Height (C)2.13m
    Stowed Length (D)7.2m
    Overall Width (E)2.26m
    Wheelbase (F)2.1m
    Max Loading Weight230kg (2-person)
    Platform Rotation±70°
    Turntable Rotation360°
    Vertical Jib Rotation±70°
    Moving Speed (stowed)5.5km/h
    Climbing Capacity (stowed)45%
    Max Working Angle (Tilt Sensor Activation)
    Turning Radius4.5m
    Total WeightAbout 7500kg
    Payment Term

    By T/T, 50% prepaid

    Pay the balance before loading

    Delivery Time60 working days
    Shipment1*20’ container

    Curved-arm Altitude Platform, Boom Lift, Electrical driving or Diesel drivingCurved-arm Altitude Platform, Boom Lift, Electrical driving or Diesel drivingCurved-arm Altitude Platform, Boom Lift, Electrical driving or Diesel drivingCurved-arm Altitude Platform, Boom Lift, Electrical driving or Diesel driving
